Cannondale

Topstone Carbon Apex AXS in Orchid

£3,750.00
Earn
in Customer Rewards when you buy this item today
Pre-Order

With Pre-Order, you can purchase the latest items added to our store in advance of them arriving with us.

Your Pre-Order is prioritised (at no additional charge); meaning that as soon as the product arrives with us, we can wrap it straight back up; ready for collection via Click & Collect or despatch to you — it often never even hits the stock room shelves!

Pre-Launch

With Pre-Launch, the date when we expect to receive the product ourselves is still a little too hazy to be confident in accepting Pre-Orders.

So, instead, you can submit your email address against the item you are interested in and we will email you as soon as stock arrives on the system.

Estimated Delivery & Collection Dates

Estimated Delivery & Collection Dates are given on Pre-Order and Pre-Launch products. They are for indication purposes only and can change at any time without notice.

The dates we provide are based on indications given by our suppliers. Whenever we get updated information from our suppliers we will endeavour to update the Estimated Delivery & Collection Dates provided on product pages.

We estimate this will be ready for despatch to you or collection via Click & Collect on Undetermined
Earn Rewards
When you purchase this item, you will earn of rewards points to spend on your next purchase from us. You can spend your Rewards balance in-store & online.

In any circumstance of delivery damage, warranty claim or return, please email: support@cyclerevolution.net to request the appropriate forms.

GENERAL CONDITIONS

Only the original purchaser has the right to return faulty goods.

Due to the high incidence of fraud we regret that we are unable to offer any refund without a valid receipt. You must include this with any claim. All refunds under this returns policy will be paid within 30 days of us receiving the returned goods. Refunds will be processed using the same method of payment used for the original purchase. Credit and debit card refunds must be made to the same card used for the original purchase.

For hygiene reasons, we are unable to accept returns of face masks or cycling underwear whereby the item has been removed from its packaging.

Our returns policy does not affect your statutory rights, full details of which can be obtained from any Trading Standards Department or Citizen’s Advice Bureau.

DAMAGED GOODS UPON DELIVERY/RETURN

If an order(s) is broken or spoiled when it is delivered, please notify us within 48 hours of delivery otherwise the returns policy no longer applies. Within this period, we will also require images of the damage to the packaging and its contents. This will need to be emailed to the relevant store or support@cyclerevolution.net. The customer making a return will be held liable for costs arising from any damage that occurs to the item(s) when returning to any of our stores.

RETURNING AN UNWANTED PURCHASE FOR REFUND OR EXCHANGE IN STORE

If you wish to return or exchange any unwanted item(s) for any reason, you can return the item(s) to the original store it was purchased from within 28 days. Partial returns are possible. Goods must be returned intact, unused, undamaged, clean or not having been fitted to a bike. Items need to be in resalable condition in original packaging including all warranty cards, manuals and accessories.

Refunds cannot necessarily be given if the item or bicycle was ordered specifically from our supplier to fulfil the initial order. In certain circumstances, an exchange will be possible.

CANCELLATION OF UNDELIVERED ORDERS

Refunds of deposits cannot be given if the item or bicycle has had to be ordered specially from our supplier. If the item was from stock and has been held on deposit layaway for more than 28 days, then the deposit cannot be refunded, only exchanged or added to an account credit.

ONLINE SALES

If you wish to cancel or return an order at any time up to 14 days from the date of order, please contact us as soon as possible via email, or phone the branch you purchased from for a copy of our returns form. Partial returns are possible. Goods must be returned intact, unused, undamaged, clean and not having been fitted to a bike. Items need to be in resalable condition in original packaging including all warranty cards, manuals and accessories. This includes any damaged incurred whilst building, packaging or shipping a bike. Please do not directly stick labels or write on the item or the item's original packaging.

Send your goods (unless otherwise stated) securely packaged by a recorded delivery method, including a copy of your receipt and the returns form sent by us, to the store where you purchased the item from.

Please Note: The customer making a return will be held liable for costs arising from any loss or damage that occurs to the item(s) when returning to any of our stores.

It’s the responsibility of the purchaser to arrange and cover the costs of any returns. If you want assistance in returning a bulky item such as a bicycle, fork or turbo trainer, please email the Returns Department on support@cyclerevolution.net to arrange a special courier collection. Depending on the reasons for returning an item a charge may be incurred for this service.

WARRANTY CLAIMS FOR FAULTY GOODS

In any circumstance of a suspected faulty item purchased from ourselves either in-store or online, please contact us as soon as possible in person or via email with details and/or pictures where possible to obtain a warranty returns number.

On receipt of your goods, we will carry out a warranty inspection and will contact you within 3 working days of receipt. Terms and conditions of warranties vary depending on the product, so please consult your owner's guide of the manufacturer directly for clarification. If your purchase is within the manufacturer's warranty period we will repair or replace the item(s) as stated in the manufacturer's warranty guidelines. In some cases, the manufacturer/ supplier may require to see the item(s) before repair or replacement can take place. In this unavoidable situation, we will inform you and it is likely to increase the turnaround time of your claim.

The customer is entitled to an immediate refund if the goods are deemed to be faulty, of unsatisfactory quality or unfit for purpose within 30 days of purchase. Cycle Revolution reserve the right to exchange or repair any faulty goods between 30 days and before 6 months from the original purchase. Should this one and only repair be unsatisfactory then a customer is entitled to a complete refund. After 6 months from purchase, it is the responsibility of the purchaser to prove a fault.

Fair wear and tear or misuse are not considered a fault and Thomas Cycle Revolution would not be liable in these cases.

Labour or transportation costs are not covered by any warranty. As part of our customer service commitment, we are happy to cover the labour of any warranty claim for 6 month, upon bicycles we supplied or repaired.

EXEMPTIONS

Thomas’s Cycle Revolution Ltd reserve the right to decline a refund or an exchange if the condition of the item(s) don’t comply with the terms above and/or the claim is outside the stated time scales.

Sorry, gift certificates and charitable prizes cannot be returned and account credits cannot be refunded.

Thomas Cycle Revolution reserve the right to pass on charges onto the customer for any return of unwanted goods that incurs a cost to the process. These include any costs levied by a finance company, courier or CycleScheme provider. We also have the right to charge for any labour or courier costs it may take to process a return should any complications arise due to negligence or accidental damage.

We will try our best to process any return, exchange, refund or warranty claim as efficiently and fairly as possible, complying with the terms above and manufacturers guidelines. We respectfully ask that customers realise that we are only human, and rude or threatening behaviour to any staff member cannot be tolerated.

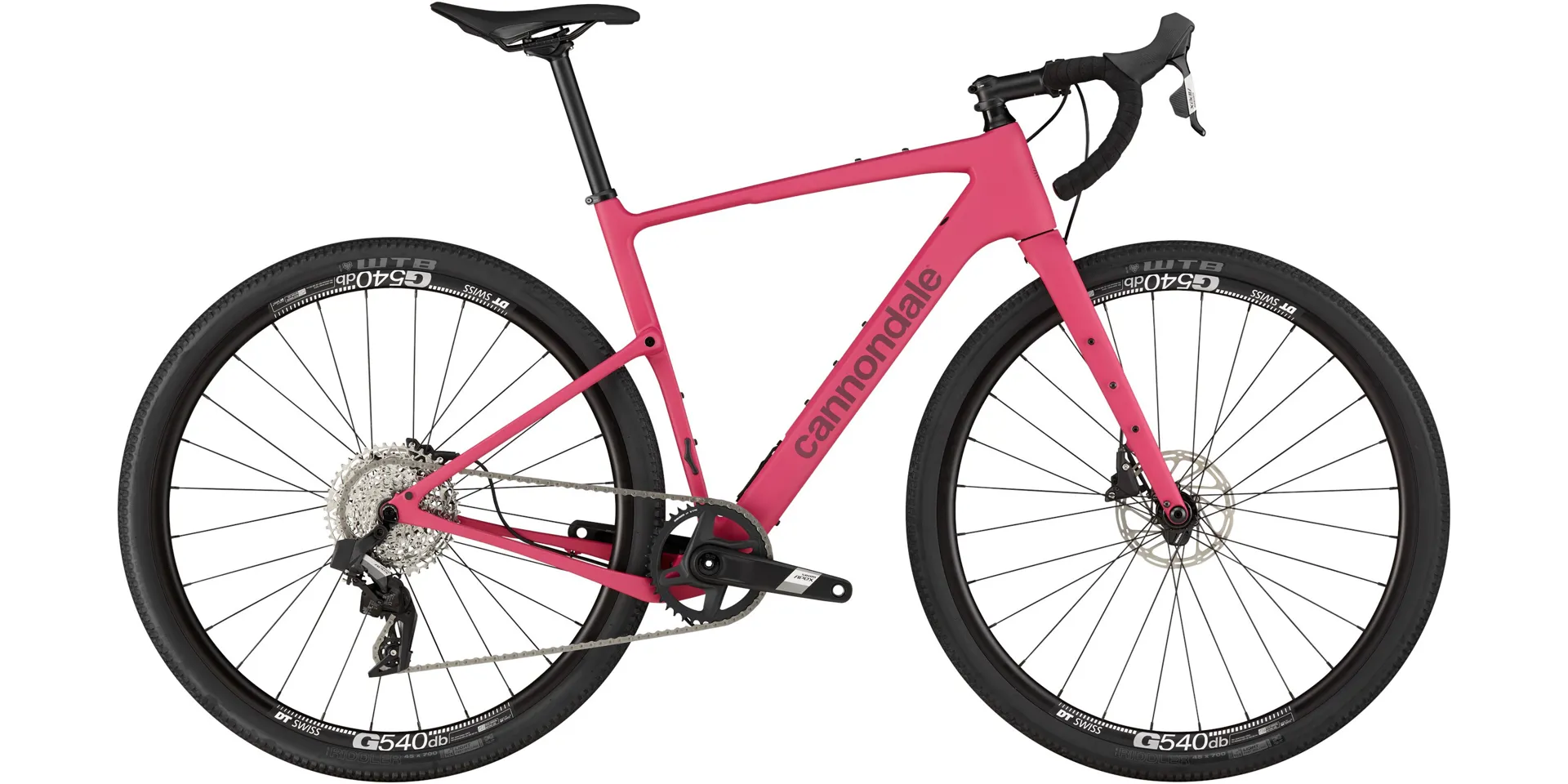

Topstone Carbon Apex AXS in Orchid

Brand:Cannondale

Code:C15703UOrchid

Nothing is impassable
The best gravel bike for anything from dirt roads to singletrack trails. With the grip and comfort of the Kingpin suspension, nothing is off-limits.

Where it thrives
Gravel and Dirt Roads, Rough Pavement, Trails

What it's built for
Gravel riding, back road exploring, bike packing and off-road adventures

Highlights
  • Lightweight Topstone Carbon frameset with Kingpin suspension, SmartSense compatible / Integrated Cannondale App connectivity
  • SRAM Apex AXS XPLR 12-speed wireless electronic shifting & hydraulic disc brakes
  • DT Swiss G540 rims / WTB Riddler TCS Light, 700x45c, tubeless ready tires
Kingpin Suspension
Delivering a smooth ride without the added weight and complexity of a shock and links, Kingpin is our answer for the most demanding gravel riders. Whether you need more comfort to go long, more traction to push beyond or more give to take on the tech - Kingpin is the maintenance-free, lightweight answer to your prayers.

Load Up. Roll Out.
With plentiful gear and waterbottle mounts on the frame and fork, Topstone Carbon is ready to load up and go long.

Corner like a Boss
Rail through the rough and come out smiling. Led by our OutFront steering geometry, the Topstone Carbon offers up handling that's serenely stable in the chop, and light & nimble everywhere else.
Technical Information

DETAILS

  • Platform
    Topstone Carbon
  • Model Name
    Topstone Carbon Apex AXS
  • Model Code
    C15703U

FRAMESET

  • Frame
    Topstone Carbon, Kingpin suspension system, SmartSense compatible, Proportional Response construction, 12x142mm thru-axle, 27.2 dropper post compatible, BSA 68mm threaded BB, DirectLine internal cable routing, removable fender bridge, multiple gear/bottle mounts
  • Fork
    Topstone Carbon, 1-1/8" to 1.5" steerer, 55mm OutFront offset, flat mount disc, internal routing, 12x100 thru-axle, triple bottle/gear mounts, fender mounts
  • Headset
    Integrated, 1-1/8" - 1.5"

DRIVETRAIN

  • Rear Derailleur
    SRAM Apex AXS XPLR wireless
  • Shifters
    SRAM Apex AXS wireless, hydraulic disc, 12-speed
  • Chain
    SRAM Apex, 12-speed
  • Crank
    SRAM Apex 1 Wide, 40T
  • Rear Cogs
    SRAM PG-1231 XPLR, 11-44, 12-speed
  • Bottom Bracket
    SRAM DUB BSA

BRAKES

  • Brakes
    SRAM Apex hydraulic disc, 160/160mm Centerline rotors
  • Brake Levers
    SRAM Apex AXS hydraulic disc

WHEELS

  • Rims
    DT Swiss G540, 28h, 24mm inner width
  • Spokes
    Stainless Steel, 14g
  • Tire Size
    45
  • Wheel Size
    700
  • Hubs
    (F) Formula cartridge bearing, 12x100mm centerlock / (R) Formula cartridge bearing, 12x142mm centerlock
  • Tires
    WTB Riddler TCS Light, 700x45c, tubeless ready

COMPONENTS

  • Handlebar
    Cannondale 3, butted 6061 Alloy, 16 deg flare drop
  • Stem
    Cannondale 3, 6061 Alloy, 31.8, 7°
  • Grips
    Fizik Solocush Soft, 3mm
  • Saddle
    Fizik New Aliante R5, S-alloy rails
  • Seatpost
    Cannondale 3, 6061 Alloy, 27.2x350mm

CONNECTIVITY

  • Wheel Sensor
    Cannondale Wheel Sensor

EXTRA

  • Extra 1
    StrapRack Tool Carrier, SRAM AXS charger
Sizing Information

Cannondale - Men's Bike Sizing Guide

Cannondale - Men's Road Bike Sizing Guide

HeightInseam LegBike Frame Size
4'10" - 5'1"22.5" - 27"46 - 48cm
5'0" - 5'3"26.5" - 28"48 - 50cm
5'2" - 5'5"27.5" - 29"50 - 52cm
5'4" - 5'7"28.5" - 30"52 - 54cm
5'6" - 5'9"29.5" - 31"54 - 56cm
5'8" - 5'11"30.5" - 32"56 - 58cm
5'10" - 6'1"31.5" - 33"58 - 60cm
6'0" - 6'3"32.5" - 34"60 - 62cm
6'2" - 6'5"34.5" - 36"62 - 64cm

Cannondale Men's Mountain Bike Sizing Guide

Bear in mind this is a rough sizing guide. Please contact one of our stores or support for a better fit.

HeightInchesSize
5'0" - 5'4"13 - 14XS
5'4" - 5'7"14 - 16S
5'7" - 5'10"16 - 18M
5'10" - 6'1"18 - 20L
6'1" +20 - 22XL

Getting the right fit

Finding the right size bike for your body size is essential if you want to ensure the optimum experience, comfort and enjoyment while you ride. Because the sizing varies between the type of bike, the brand and even the model, getting the perfect fit can seem daunting at first. That’s why we’ve created these guides. And if you're still unsure just give one of our stores of Support Dept a call.

Measure Your Height

To get a better match it's best to start by measuring yourself.

  1. Take off your shoes and stand with your back against a wall.
  2. Make sure your legs are together and your shoulders are back.
  3. Place a pencil on top of your head and mark the wall (the best and easiest way to do this properly is with a friend to help you).
  4. Measure from the floor to the pencil mark you have just made with a tape measure.

Range of Reach

For most people to get the right frame size, measuring your height will suffice. However, you may find that your height is on the borderline of the range we suggest for a particular frame. If this occurs you need to measure the range of your reach or “Ape Index”. This will ensure you get a comfortable distance between the handlebars and your saddle.

  1. Stand up straight with your back against a wall.
  2. Hold your arms out horizontally on either side of you.
  3. Measure the distance from the fingertip of one hand to the fingertip of the other. This measurement is your arm span.
  4. Subtract your height from this figure to get your Ape Index.
  5. If the result is POSITIVE (your arm span is greater than your height) you should choose a larger-size of bike.
  6. If the result is NEGATIVE (your arm span is less than your height) then you need a smaller-sized bike.

Stand Over Height

It's important to consider your inside leg measurement when choosing a bike to ensure adequate stand-over height. Stand-over height is the clearance between the top tube and the bottom of your crotch when standing over the bike. For mountain bikes, we recommend a distance of around 2-4 inches and for road or hybrid bikes around 1-2 inches of clearance is required. This will ensure comfort when you’re stopped and stand with the bike betwixt your legs.

Our bike sizing charts take stand-over height into consideration but if you have a particularly long or short inside leg measurement in relation to your height you will need to bear this in mind when selecting your frame size.

Riding Style

The way you ride and the type of bike you are into will also impact the frame size you should choose. For example, a trail devotee looking for an aggressive ride may prefer a smaller, more maneuverable bike size. It all comes down to personal preference and how the bike feels to you.
