Frame Colour GX Electric Blue (uniform), Matt Black (uniform), White/Black (Two Tone | Gloss White front frame & Gloss Black Cleandrive)
GXi Gunmetal Grey (uniform), Matt Black (uniform), White (uniform)
Frame Material Hydro-formed 6061 T6 alloy front frame with injection moulded magnesium Cleandrive
PitstopWheel® Magnesium with center hub mount
PitstopWheel® Colour Gloss Black
Motor Drive Control Pedal Torque Sensing
Daytime Running Light (DRL)** GX None
GXi Gocycle Proprietary Light Pipe Technology, 4 running modes, user selectable
Smart Device Connectivity*** GocycleConnect® App via wireless Bluetooth®
Riding Modes City, Eco, On-Demand, Custom. Multiple, programmable through GocycleConnect™ App
Electric Drive Speed**** 20 mph / 25 kph
Range
GX Up to 40 miles (65 km), depending on pedal input
GXi Up to 50 miles (80 km), depending on pedal input
Motor
Gocycle proprietary front hub motor gear drive with traction control 250 W EU, 500 W US continuous
Battery
GX Quick removable lithium ion: 13.7 Ah, 22 V, approx 300 Wh
GXi Quick removable lithium ion: 17 Ah, 22 V, approx 375 Wh
Charging Time
GX 7 hours (4 hours with optional fast charger)
GXi 4 hours
Motor Controller Gocycle proprietary
Handlebar Display GX
LED Fuel Guage or with Smart Device and GocycleConnect™ App
GXi Integrated dashboard display with fuel gauge, speed, gear, efficiency or Smart Device and GocycleConnect™ App
Shifting
GX Mechanical Microshift™
GXi Gocycle electronic Predictive Shifting™
Transmission
Patented Cleandrive® Shimano Nexus 3-speed
Gear Inches 1st=39.1 in, 2nd=53.3 in, 3rd=72.5 in
Gear Development 1st=3.1 m, 2nd=4.3 m, 3rd=5.8 m
Brakes
Hydraulic disk, front and rear
Tyres
Gocycle All Weather (406-54, 20 x 2.25 in)
Front Motor Fork Gocycle proprietary, single-sided, 6061 T6, fixed
Rear Suspension Gocycle Lockshock™ 25mm (1 in) travel
Saddle
GX Velo Sport
GXi Velo D2 Comfort
Seat Post 34.9 mm Aluminium
Pedals
GX Gocycle Folding Standard
GXi MKS EZY Detachable Pedals
Grips
GX Gocycle Sport Ergo
GXi Gocycle Ergo Comfort
Frame Size and Fit Universal Vgonomic™
Handlebar Stem
GX Quick Folding
GXi Quick folding and height adjustment
Head Angle 70°
Seat Tube Angle 68°
Wheelbase 1065mm (42 in)
Bottom Bracket Height 275mm (11.5 in)

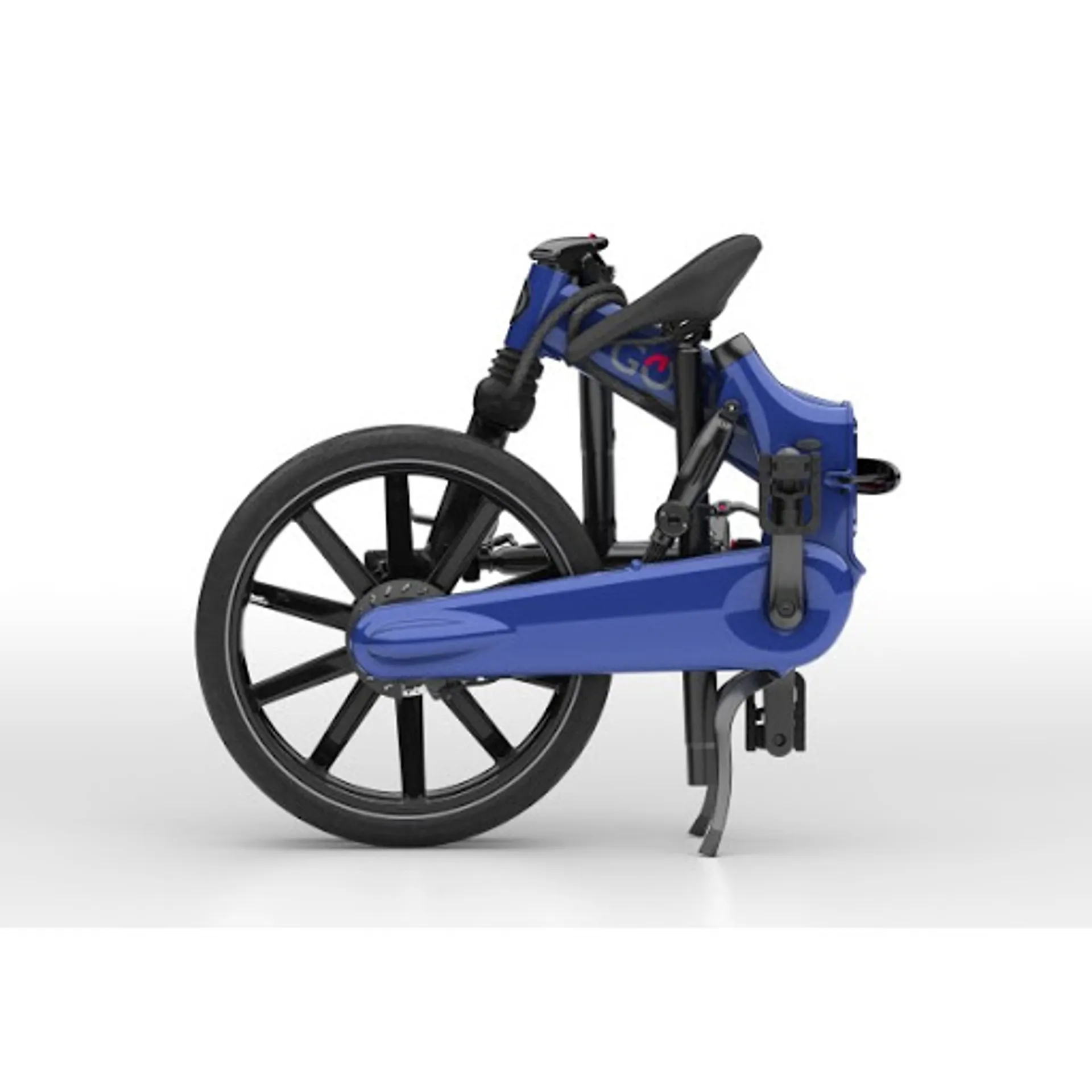

Folding Method Fast Folding frame and handlebar
Stowable Dimensions
GX Kickstand down: L830mm x W390mm x H750mm (L32.7in x W15.3in x H29.5in) with folding pedals folded; Kickstand up: L880mm x W390mm x H615mm (L34.6in x W15.3in x H24.2in) with folding pedals folded
GXi Kickstand down: L830mm x W370mm x H750mm (L32.7in x W14.6in x H29.5in) with removable pedal detached; Kickstand up: L880mm x W370mm x H615mm (L34.6in x W14.6in x H24.2in) with removable pedal detached
Approximate Weight
GX 17.8kg (39.2 lbs) excluding kickstand & including pedals
GXi 17.5 kg (38.6lbs)
Maximum Rider Weight 100kg (220 lbs), including clothing and luggage
