ENVE Fray - Frameset Builder

Standard Price
£5,500.00
Earn
in Customer Rewards when you buy this item today
Short Description

All Road or Endurance, call it what you want. The Fray is for riders who want speed, versatility, and max performance – infused with a World Tour pedigree and a call for exploration.

An ENVE Chassis is the canvas upon which you can build your dream bike. The Fray is typically sold as a chassis-only which includes the frame, fork, headset, stem, handlebar, and seatpost. To initiate your build, begin by selecting your frame size, stem length, handlebar width, and seatpost setback. If there are questions regarding your fit, work with your ENVE retailer and/or bike fitter, and employ the use of the ENVE Best-Fit Calculator to reach your ideal chassis configuration. From there, pair it with your drivetrain of choice and your favorite SES or Foundation wheelset.

Customise your product & Buy online today
Colour

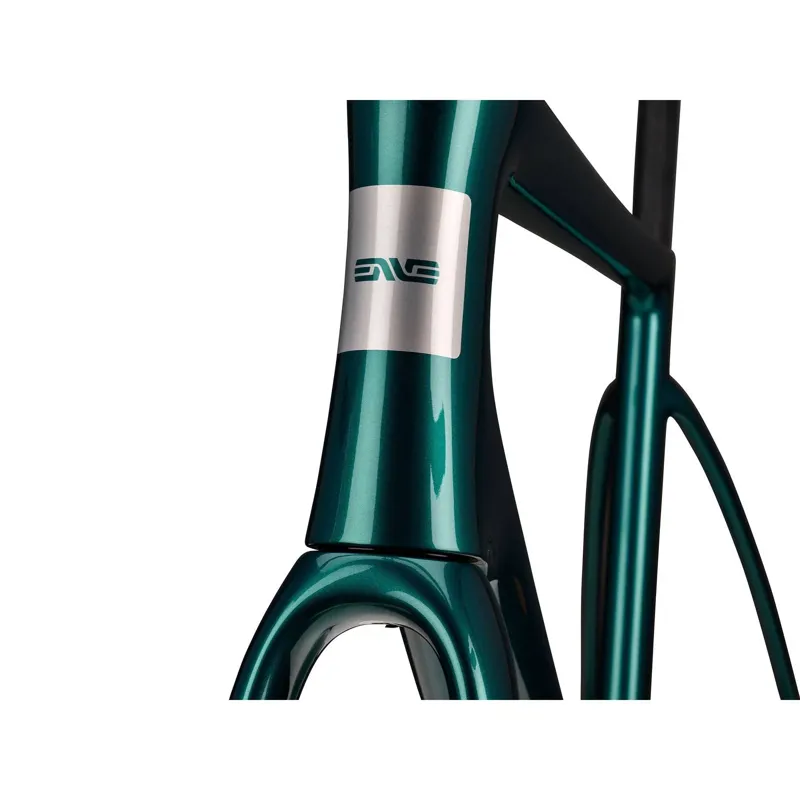

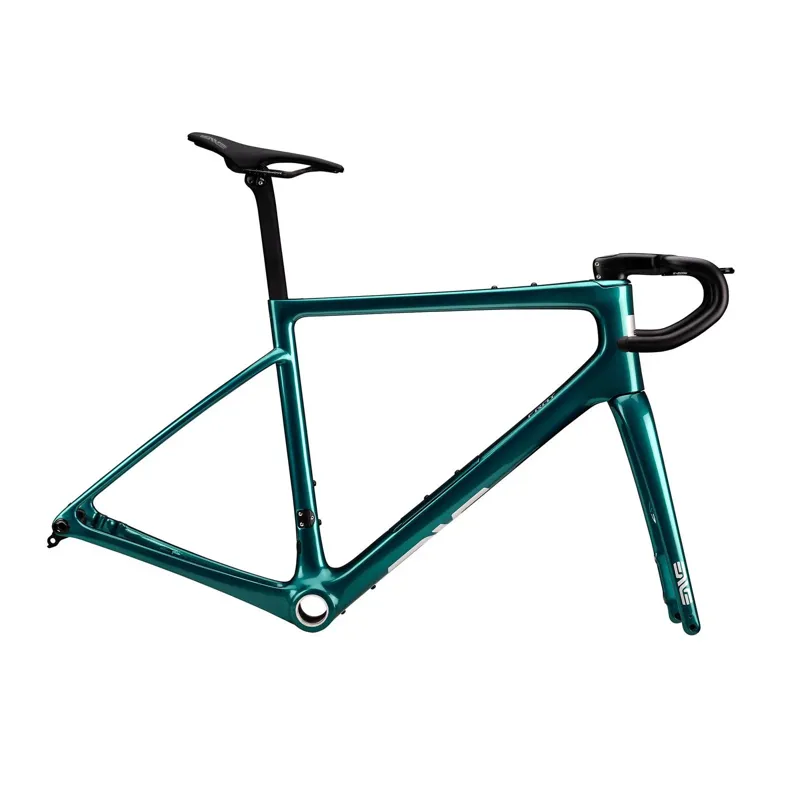

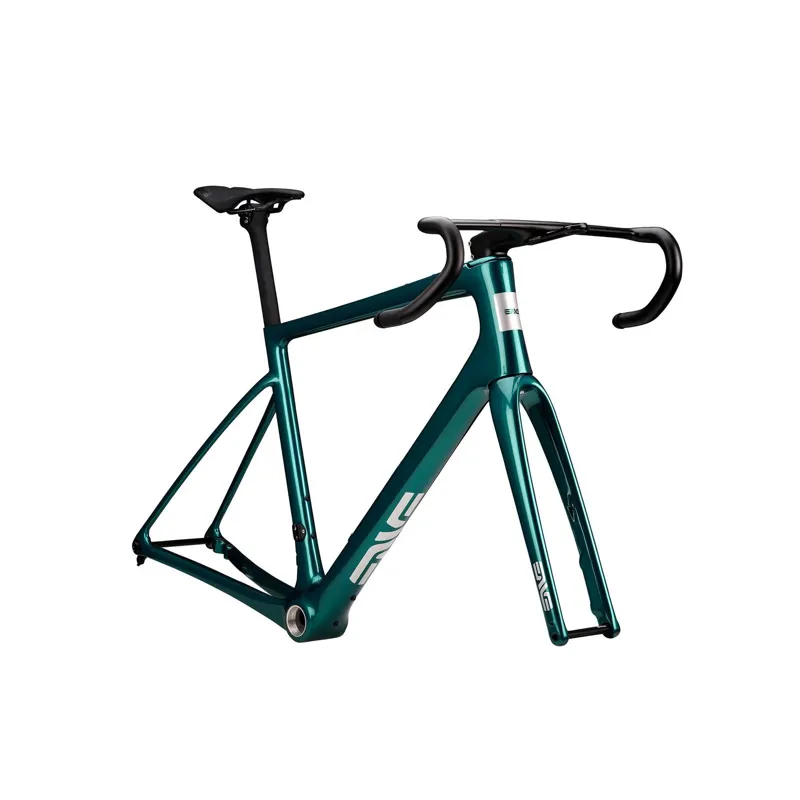

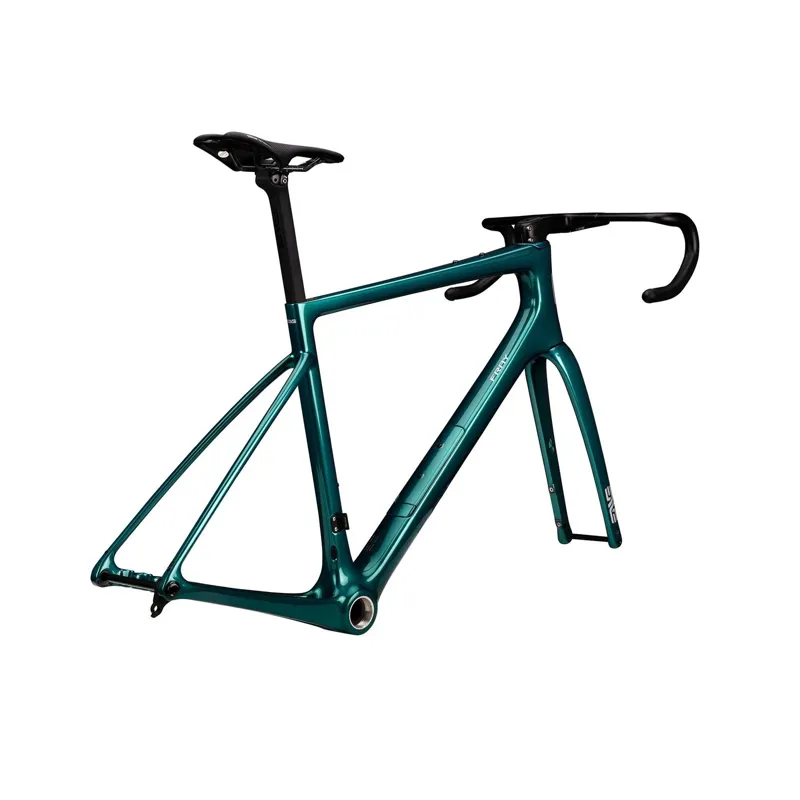

Agave Blue

Agave Blue



Add

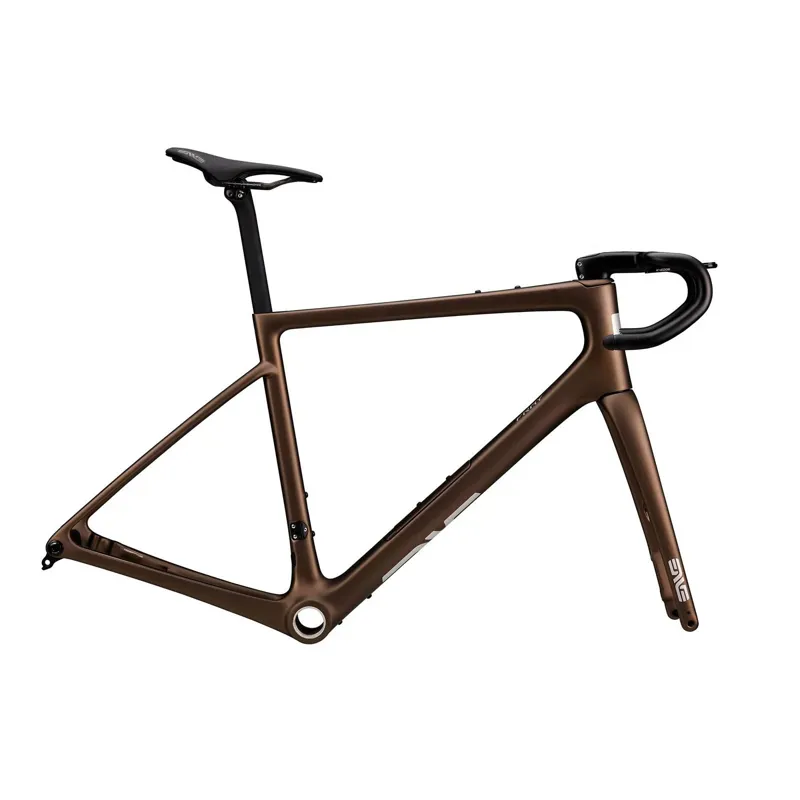

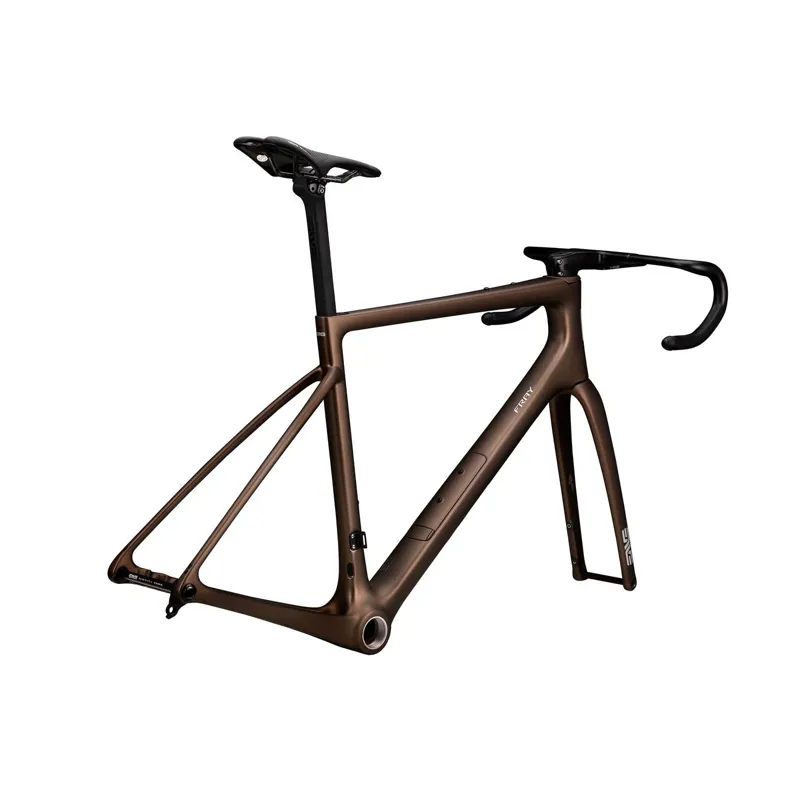

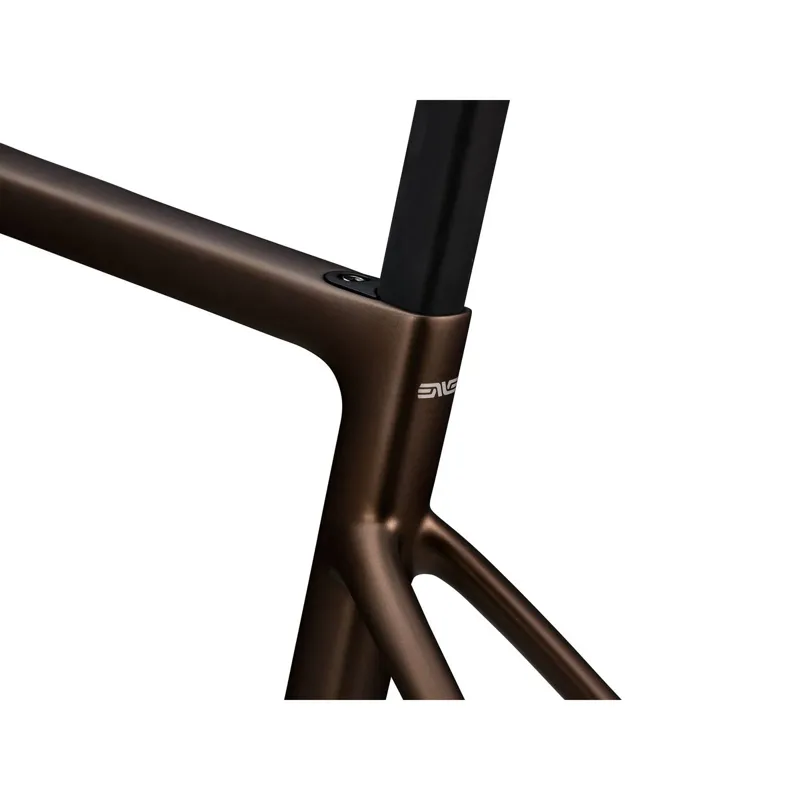

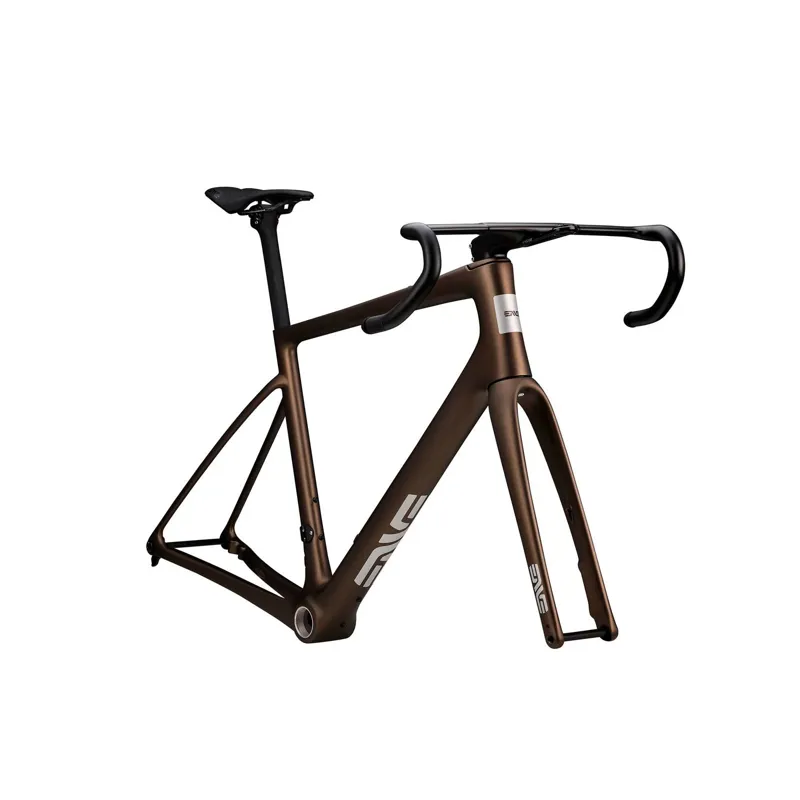

Toffee Brown

Toffee Brown



Add

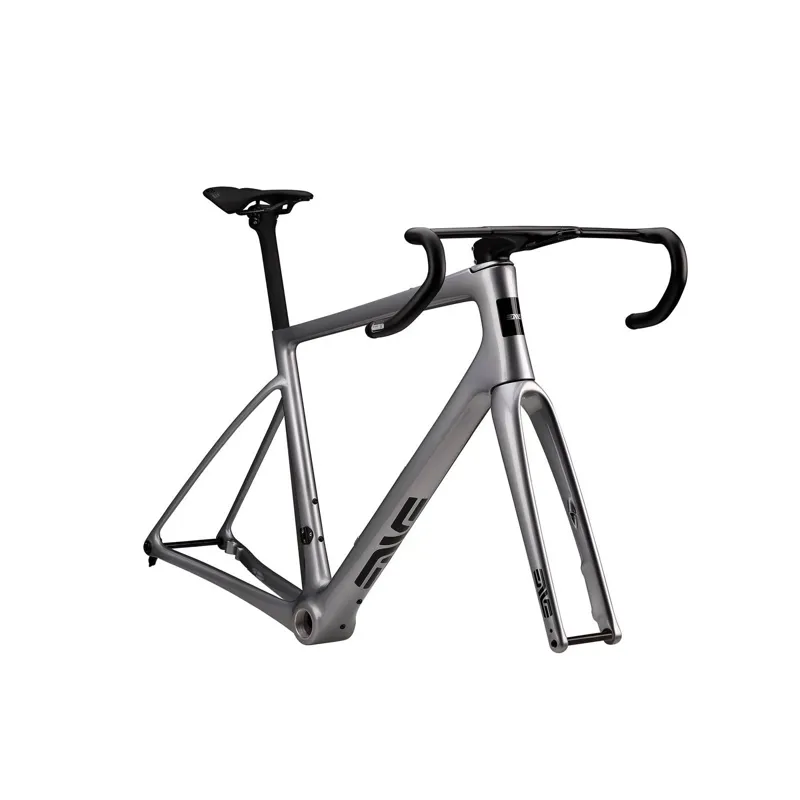

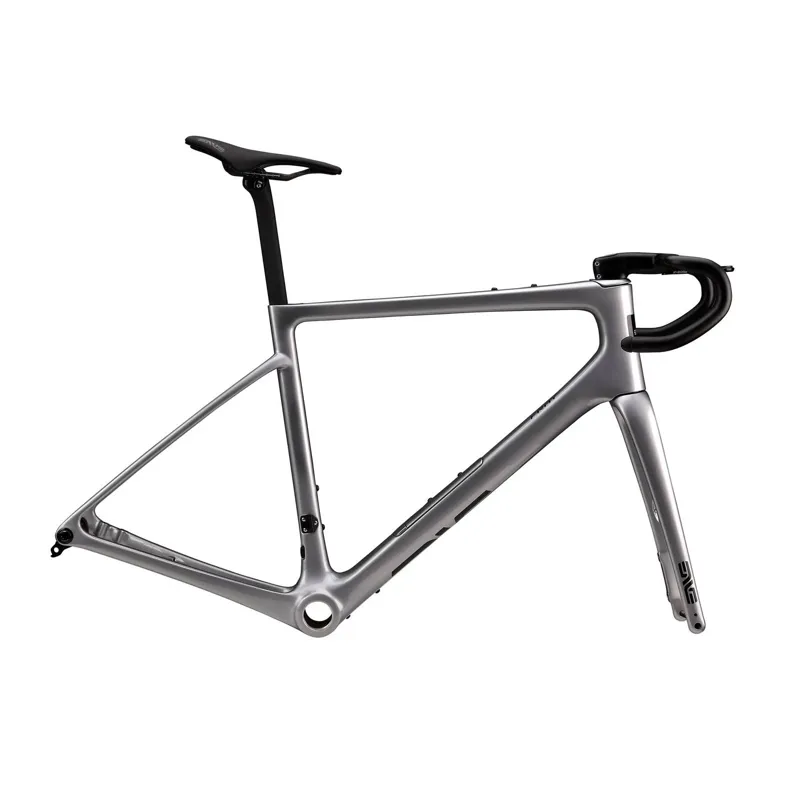

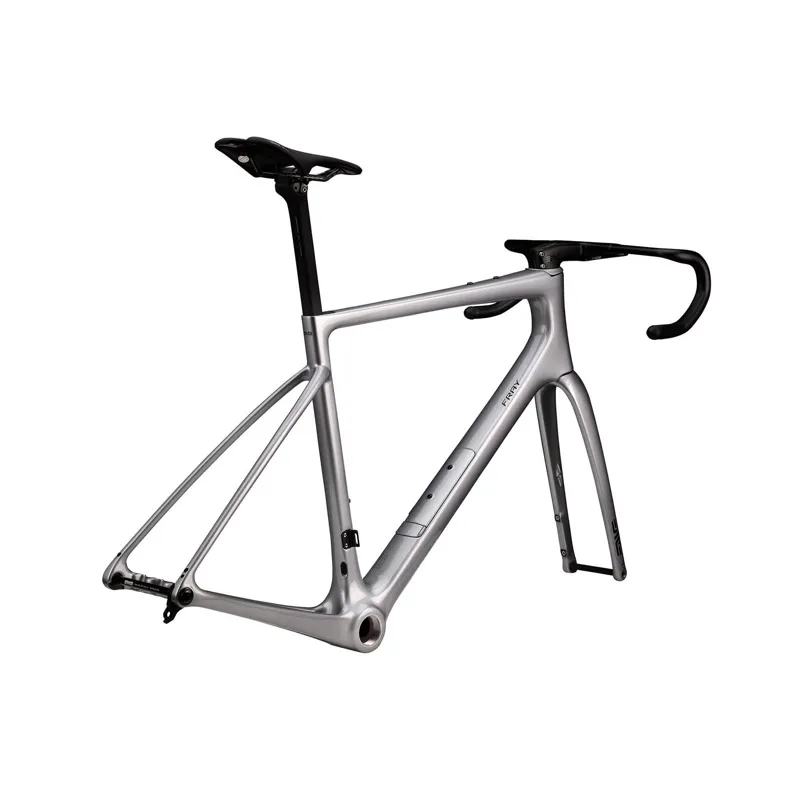

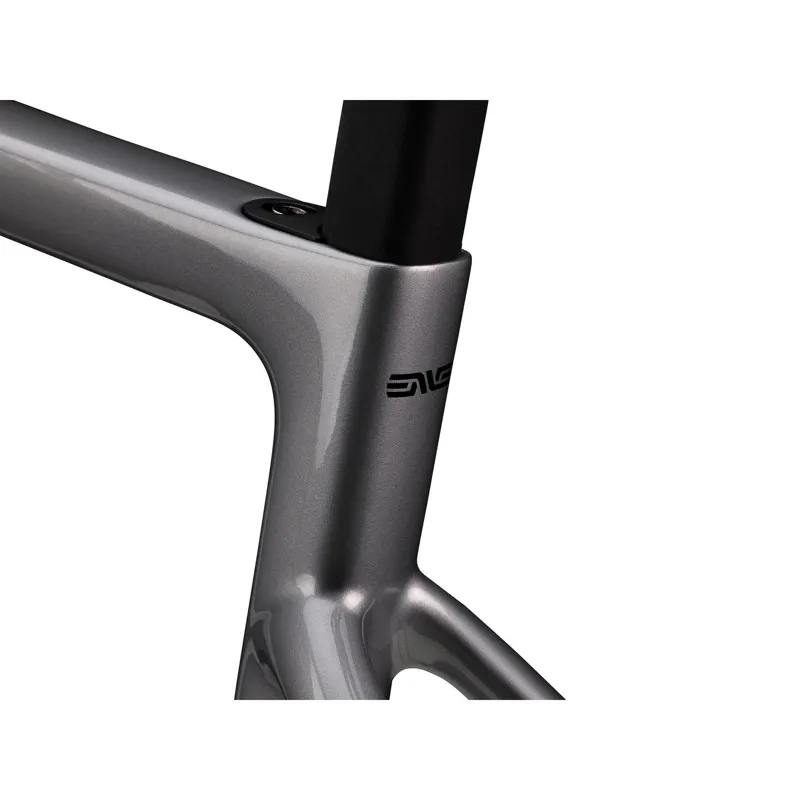

GT Silver

GT Silver



Add
Handlebars
One Piece Handlebar Selected

One Piece Handlebar Selected



Add
Aero IN-Route - 40cm

Aero IN-Route - 40cm



Add
Aero IN-Route - 42cm

Aero IN-Route - 42cm



Add
Aero IN-Route - 44cm

Aero IN-Route - 44cm



Add
Aero IN-Route - 46cm

Aero IN-Route - 46cm



Add
Compact Road IN-Route 38cm

Compact Road IN-Route 38cm



Add
Compact Road IN-Route 40cm

Compact Road IN-Route 40cm



Add
Compact Road IN-Route 42cm

Compact Road IN-Route 42cm



Add
Compact Road IN-Route 44cm

Compact Road IN-Route 44cm



Add
Compact Road IN-Route 46cm

Compact Road IN-Route 46cm



Add
SES AR Road IN-Route - 38cm

SES AR Road IN-Route - 38cm



Add
SES AR Road IN-Route - 40cm

SES AR Road IN-Route - 40cm



Add
SES AR Road IN-Route - 42cm

SES AR Road IN-Route - 42cm



Add
SES AR Road IN-Route - 44cm

SES AR Road IN-Route - 44cm



Add
SES AR Road IN-Route - 46cm

SES AR Road IN-Route - 46cm



Add
Seatpost
Aero Seapost - 400mm/0mm

Aero Seapost - 400mm/0mm



Add
Aero Seapost - 400mm/20mm

Aero Seapost - 400mm/20mm



Add
SES Aero Pro One Piece Handlebar
Staying With Standard Setup

Staying With Standard Setup



Add
SES Aero Pro one piece - 90mm - 37/40cm

SES Aero Pro one piece - 90mm - 37/40cm



Add
+ £470.00
SES Aero Pro one piece - 90mm - 39/42cm

SES Aero Pro one piece - 90mm - 39/42cm



Add
+ £470.00
SES Aero Pro one piece - 100mm - 37/40cm

SES Aero Pro one piece - 100mm - 37/40cm



Add
+ £470.00
SES Aero Pro one piece - 100mm - 39/42cm

SES Aero Pro one piece - 100mm - 39/42cm



Add
+ £470.00
SES Aero Pro one piece - 100mm - 41/44cm

SES Aero Pro one piece - 100mm - 41/44cm



Add
+ £470.00
SES Aero Pro one piece - 110mm - 37/40cm

SES Aero Pro one piece - 110mm - 37/40cm



Add
+ £470.00
SES Aero Pro one piece - 110mm - 39/42cm

SES Aero Pro one piece - 110mm - 39/42cm



Add
+ £470.00
SES Aero Pro one piece - 110mm - 41/44cm

SES Aero Pro one piece - 110mm - 41/44cm



Add
+ £470.00
SES Aero Pro one piece - 120mm - 37/40cm

SES Aero Pro one piece - 120mm - 37/40cm



Add
+ £470.00
SES Aero Pro one piece - 120mm - 39/42cm

SES Aero Pro one piece - 120mm - 39/42cm



Add
+ £470.00
SES Aero Pro one piece - 120mm - 41/44cm

SES Aero Pro one piece - 120mm - 41/44cm



Add
+ £470.00
SES Aero Pro one piece - 130mm - 37/40cm

SES Aero Pro one piece - 130mm - 37/40cm



Add
+ £470.00
SES Aero Pro one piece - 130mm - 39/42cm

SES Aero Pro one piece - 130mm - 39/42cm



Add
+ £470.00
SES Aero Pro one piece - 130mm - 41/44cm

SES Aero Pro one piece - 130mm - 41/44cm



Add
+ £470.00
SES Aero Pro one piece - 140mm - 37/40cm

SES Aero Pro one piece - 140mm - 37/40cm



Add
+ £470.00
SES Aero Pro one piece - 140mm - 39/42cm

SES Aero Pro one piece - 140mm - 39/42cm



Add
+ £470.00
SES Aero Pro one piece - 140mm - 41/44cm

SES Aero Pro one piece - 140mm - 41/44cm



Add
+ £470.00
SES AR One Piece Handlebars
Staying With Standard Setup

Staying With Standard Setup



Add
SES AR one piece - 90mm - 38cm

SES AR one piece - 90mm - 38cm



Add
+ £470.00
SES AR one piece - 90mm - 40cm

SES AR one piece - 90mm - 40cm



Add
+ £470.00
SES AR one piece - 90mm - 42cm

SES AR one piece - 90mm - 42cm



Add
+ £470.00
SES AR one piece - 90mm - 44cm

SES AR one piece - 90mm - 44cm



Add
+ £470.00
SES AR one piece - 90mm - 46cm

SES AR one piece - 90mm - 46cm



Add
+ £470.00
SES AR one piece - 100mm - 38cm

SES AR one piece - 100mm - 38cm



Add
+ £470.00
SES AR one piece - 100mm - 40cm

SES AR one piece - 100mm - 40cm



Add
+ £470.00
SES AR one piece - 100mm - 42cm

SES AR one piece - 100mm - 42cm



Add
+ £470.00
SES AR one piece - 100mm - 44cm

SES AR one piece - 100mm - 44cm



Add
+ £470.00
SES AR one piece - 100mm - 46cm

SES AR one piece - 100mm - 46cm



Add
+ £470.00
SES AR one piece - 110mm - 38cm

SES AR one piece - 110mm - 38cm



Add
+ £470.00
SES AR one piece - 110mm - 40cm

SES AR one piece - 110mm - 40cm



Add
+ £470.00
SES AR one piece - 110mm - 42cm

SES AR one piece - 110mm - 42cm



Add
+ £470.00
SES AR one piece - 110mm - 44cm

SES AR one piece - 110mm - 44cm



Add
+ £470.00
SES AR one piece - 120mm - 38cm

SES AR one piece - 120mm - 38cm



Add
+ £470.00
SES AR one piece - 120mm - 40cm

SES AR one piece - 120mm - 40cm



Add
+ £470.00
SES AR one piece - 120mm - 42cm

SES AR one piece - 120mm - 42cm



Add
+ £470.00
SES AR one piece - 120mm - 44cm

SES AR one piece - 120mm - 44cm



Add
+ £470.00
SES AR one piece - 130mm - 42cm

SES AR one piece - 130mm - 42cm



Add
+ £470.00
SES AR one piece - 130mm - 44cm

SES AR one piece - 130mm - 44cm



Add
+ £470.00
Stem
One piece handlebar selected

One piece handlebar selected



Add
Aero -7 Degree - 90mm

Aero -7 Degree - 90mm



Add
Aero -7 Degree - 100mm

Aero -7 Degree - 100mm



Add
Aero -7 Degree - 110mm

Aero -7 Degree - 110mm



Add
Aero -7 Degree - 120mm

Aero -7 Degree - 120mm



Add
Aero -7 Degree - 130mm

Aero -7 Degree - 130mm



Add
Aero -7 Degree - 140mm

Aero -7 Degree - 140mm



Add
ENVE Fray - Frameset Builder
  • Colour :
  • Handlebars :
  • Seatpost :
  • SES Aero Pro One Piece Handlebar :
  • SES AR One Piece Handlebars :
  • Size :
  • Stem :
  • £5,500.00

    Before Purchasing

    Note that, unlike standard items elsewhere in the Online Store, we cannot guarantee that all components and parts selected during the customisation process will be readily available in our store or warehouse. To that end, we will contact you (using the details you provide during Checkout) to discuss a Lead Time on Delivery.

    If this is a time-sensitive purchase (such as a Gift), then you may want to consider contacting the team before placing your order online to ensure that your 'ENVE Fray - Frameset Builder' can be built and delivered in to your deadline.

    Earn Customer Rewards
    When you purchase this item, you will earn of rewards points to spend on your next purchase from us. You can spend your Rewards balance in-store & online.
    Fancy easy & hassle free returns?
    Access easy returns via InPost by using our online returns portal. Access it by visiting returns.cycle-revolution.net (opens in a new tab)
    General Conditions

    Any item, except food, charitable prizes, face masks / cycling underwear (when removed from packaging) or e-gift vouchers can be returned to us for any reason within 28 days, provided that the item has not been used or fitted and is returned in its original packaging with valid proof of purchase. Partial returns are possible. Goods must be returned intact, unused, undamaged, clean or not having been fitted to a bike. Items need to be in resalable condition in original packaging including all warranty cards, manuals and accessories. We reserve the right to decline a refund or an exchange if the condition of the item(s) don’t comply with the terms above and/or the claim is outside the stated time scales.

    It is recommended that you use a recorded delivery service to ensure your items are received by us. We cannot assume responsibility for items that are lost in the post. Online or in-store purchases can both be returned to any store free of charge or can be returned by post after completing our online returns form. If you wish to return your bike to us, please keep the box it arrived. If an order(s) is broken or spoiled when it is delivered, please notify us within 48 hours of delivery otherwise the returns policy no longer applies. Within this period, we will also require images of the damage to the packaging and its contents. This will need to be emailed to the relevant store or support@cyclerevolution.net.

    We reserve the right to pass on charges onto the customer for any return of unwanted goods that incurs a cost to the process. These include any costs levied by a finance company, courier or CycleScheme provider. We also have the right to charge for any labour or courier costs it may take to process a return should any complications arise due to negligence or accidental damage. We will try our best to process any return, exchange, refund or warranty claim as efficiently and fairly as possible, complying with the terms above and manufacturers guidelines. We respectfully ask that customers realise that we are only human, and rude or threatening behaviour to any staff member cannot be tolerated.

    Order Deposits & Special Orders

    Refunds of deposits / orders cannot be given if the item or bicycle has had to be ordered specially from our supplier (special orders). If the item was from stock and has been held on deposit layaway for more than 28 days, then the deposit cannot be refunded, only exchanged or added to an account credit.

    Online Orders

    If you wish to cancel or return an order at any time up to 14 days from the date of order, please contact us as soon as possible via email, phone or visit the branch you purchased from for a copy of our returns form. Partial returns are possible. Goods must be returned intact, unused, undamaged, clean and not having been fitted to a bike. Items need to be in a resalable condition with it’s original packaging including all warranty cards, manuals and accessories. This includes any damaged incurred whilst building, packaging or shipping a bike. Please do not directly stick labels or write on the item or the item's original packaging.

    Send your goods (unless otherwise stated) securely packaged (t is recommended that you use a recorded delivery service to ensure your items are received by us), including a copy of your receipt and the returns form sent by us, to the store where you purchased the item from. It’s the responsibility of the purchaser to arrange and cover the costs of any returns (except faulty or incorrect items). If you want assistance in returning a bulky item such as a bicycle, forks or turbo trainer, please email us on support@cyclerevolution.net to arrange a special courier collection. Depending on the reasons for returning an item a charge may be incurred for this service.

    Warranty Claims

    In any circumstance of a suspected faulty item purchased from ourselves either in-store or online, please contact us as soon as possible in person or via email with details and/or pictures where possible to obtain a warranty returns number. On receipt of your goods, we will carry out a warranty inspection and will contact you within 3 working days of receipt. Terms and conditions of warranties vary depending on the product, so please consult your owner's guide of the manufacturer directly for clarification. Any warranty claims not directly initiated by Cycle Revolution but by a third-party retailer must be approved by us before any work is performed. We only cover labor costs associated with the agreed-upon issues; any additional work not covered by the warranty falls under the product’s owner’s responsibility. Any work or parts purchased prior to reaching an agreement with us are the customer’s responsibility.

    If your purchase is within the manufacturer's warranty period we will repair or replace the item(s) as stated in the manufacturer's warranty guidelines. In some cases, the manufacturer/ supplier may require to see the item(s) before repair or replacement can take place. In this unavoidable situation, we will inform you and it is likely to increase the turnaround time of your claim. You are entitled to an immediate refund if the goods are deemed to be faulty, of unsatisfactory quality or unfit for purpose within 30 days of purchase. We reserve the right to exchange or repair any faulty goods between 30 days and before 6 months from the original purchase. Should this one and only repair be unsatisfactory then a customer is entitled to a complete refund. After 6 months from purchase, it is the responsibility of the purchaser to prove a fault. Labour or transportation costs are not covered by any warranty. As part of our customer service commitment, we are happy to cover the labour of any warranty claim for 6 month, upon bicycles we supplied or repaired.

    Fair wear and tear or misuse are not considered a fault and Thomas Cycle Revolution would not be liable in these cases.
    Our returns policy does not affect your statutory rights, full details of which can be obtained from any Trading Standards Department or Citizen’s Advice Bureau.

    ENVE Fray - Frameset Builder

    All Road or Endurance, call it what you want. The Fray is for riders who want speed, versatility, and max performance – infused with a World Tour pedigree and a call for exploration.

    An ENVE Chassis is the canvas upon which you can build your dream bike. The Fray is typically sold as a chassis-only which includes the frame, fork, headset, stem, handlebar, and seatpost. To initiate your build, begin by selecting your frame size, stem length, handlebar width, and seatpost setback. If there are questions regarding your fit, work with your ENVE retailer and/or bike fitter, and employ the use of the ENVE Best-Fit Calculator to reach your ideal chassis configuration. From there, pair it with your drivetrain of choice and your favorite SES or Foundation wheelset.

    • Chassis consists of frame, fork, headset, handlebar, stem and seatpost (saddle not included)
    • Performance road geometry, optimised for 31-35mm tyres
    • Clearance for mixed surface tyres up to 700 x 40 (1x only) or 700 x 38 (2x)
    • Lightweight, durable carbon construction through ENVE’s Material Optimised Design process
    • Aerodynamic tube shapes and design, borrowed from the Melee
    • Uses ENVE’s In-Route System to internally route cables and protect them from the wind
    • Tested in the lab and on the road at 32kph/20mph and 48kph/30mph
    • 7 frame sizes, 4 fork rakes achieve a perfect fit for every rider
    • With à la carte handlebar, stem and seat post options
    • Fender compatibility, ENVE Cargo Box and Bags for in-frame storage
    • Compatible with most drivetrains on the market, including 1x or 2x drivetrains
    • SRAM UDH, compatible with threaded T47 bottom bracket (not included)
    • 5-year Factory Limited Warranty, cover through ENVE's Incidental Damage Protection Programme
    • Made in Ogden, Utah
    Technical Information
    Spec TableFray
    FrameENVE M.O.D Carbon, 12x142 Thru-Axle, Flat-Mount Disc, Threaded T47 BB, Internal Routing, Fender Compatible
    ForkENVE M.O.D Carbon, 12x100 Thru-Axle, Flat-Mount Disc, Internal Routing, Fender Compatible
    Targeted ApplicationAll Road/Endurance/Mixed Surface/Sportif/Fondo
    Size (cm)47, 50, 52, 54, 56, 58, 60
    Fork Rake55, 51, 47, 43
    Frame Size/Fork rake47cm/55, 50cm/55, 52cm/51, 54cm/51, 56cm/47, 58cm/47, 60cm/43
    Frame Weight900g +/- 2% (size 56, Painted, No Hardware)
    HeadsetENVE Integrated IS52/IS52 Internal Drop-In
    Headset Bearing1.5" IS52 Upper and Lower
    Rear Derailleur HangerSRAM UDH Derailleur Hanger
    Seat Post DiameterENVE Aero
    BB TypeT47 Inboard Bearing
    Brake MountFlat Mount
    Rotor CompatibilityFront 160/180, Rear: 160/140
    Front Axle12x100 (Total Length: 122, TP:1.5,TL:15)
    Rear Axle12x142 (Total Length: 168, TP:1.0,TL:14)
    Minimum Measured Tire Size27mm
    Optimal tire Size31-35mm
    Maximum Measured Tire Size 1X40mm
    Maximum Measured Tire Size 2X38mm
    In-Frame StorageYes (2 storage bages included - 18.22 cubic cm EA)
    Frame RoutingENVE IN-Route Internal Frame Routing
    Waterbottle Capacity3
    Top Tube MountsYes
    Fender CompatibleYes
    Wheel Size700c

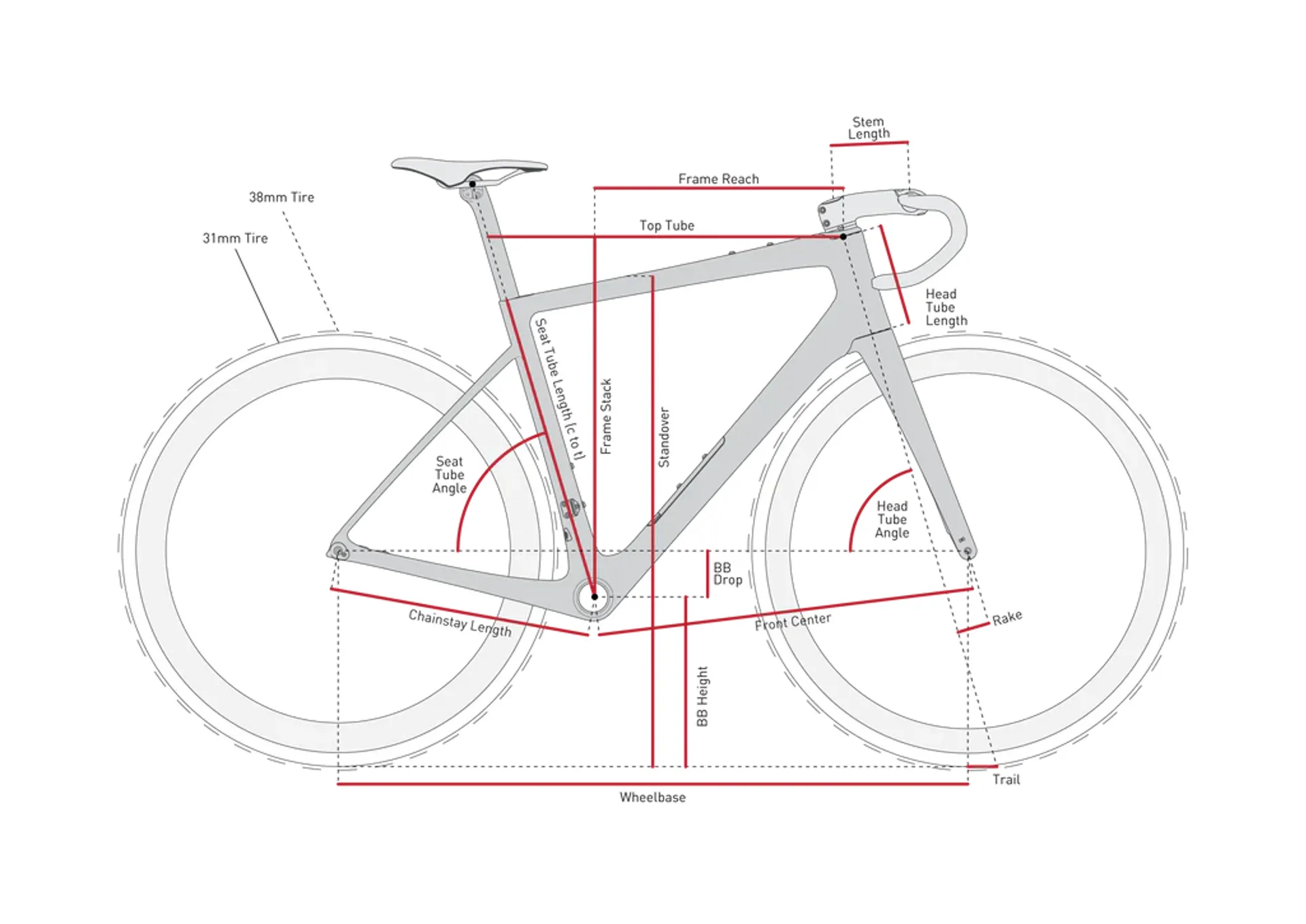

    Sizing Information

    47505254565860
    Reach365371377383389396403
    Stack522540556573591610633
    Top Tube510524539552565581599
    Rake55555151474743
    Seattube Length(C to top)426445465480502519529
    Max Saddle Rail Height with 275mm Post676695715730752769779
    Max Saddle Rail Height with 350mm Post701720740755777794804
    Max Saddle Rail Height with 400mm Post751770790805827844854
    Seattube Angle7574.57473.7573.573.272.75
    Headtube Angle70.971.3727272.672.673.3
    Headtube Length107125137157172194215
    Bottom Bracket Drop78787876767474
    Chainstay Length415415415415415417420
    Wheel Base9859949941006100810241029
    Front Center577586591598600613616
    Standover699718738756777797824
    Bottom Bracket Height (31mm Tire)264264264266266268268
    Trail (29mm Tire)60.25857.557.557.957.957.7
    Trail (31mm Tire)61.158.958.358.358.758.758.5
    Trail (33mm Tire)6259.759.159.159.559.559.2
    Trail (35mm Tire62.860.659.959.960.360.360
